Description

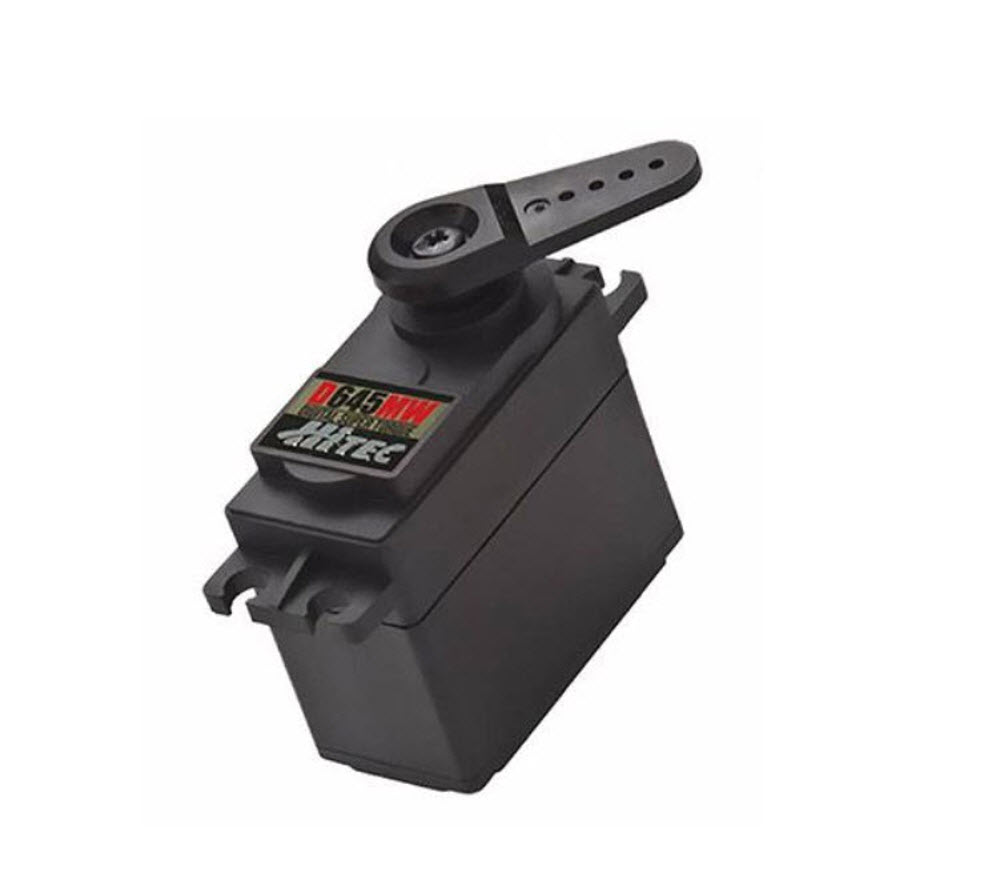

HITEC D645MW DIGITAL HV SUPER TORQUE SERVO, METAL GEAR, HRC36645, HC_OZ
Overview
The metal D-645MW is part of the Hitec D-Series dynamo servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Features
- Wide voltage input
- Metal Gears
- Programmable
- High Torque
- Gold plated connector
Product Information
The metal D-645MW is part of the Hitec D-Series dynamo servo line. All Hitec D-Series servos have been designed using brand new, cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU and 12-bit ADC for unprecedented programmability and flexibility, these servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with 3mm hex screw, each D-Series servo brings monster performance never known before in the market.
Specs
- Voltage:4.8V – 7.4V
- Speed:0.17 sec/60°
- Torque:11.3 kg-cm
- Dimensions:40.6 x 19.8 x 37.8mm
- Weight:60g
- Number of Teeth on Spline:25
- Diameter of Horn Screw:3mm
