0408785648

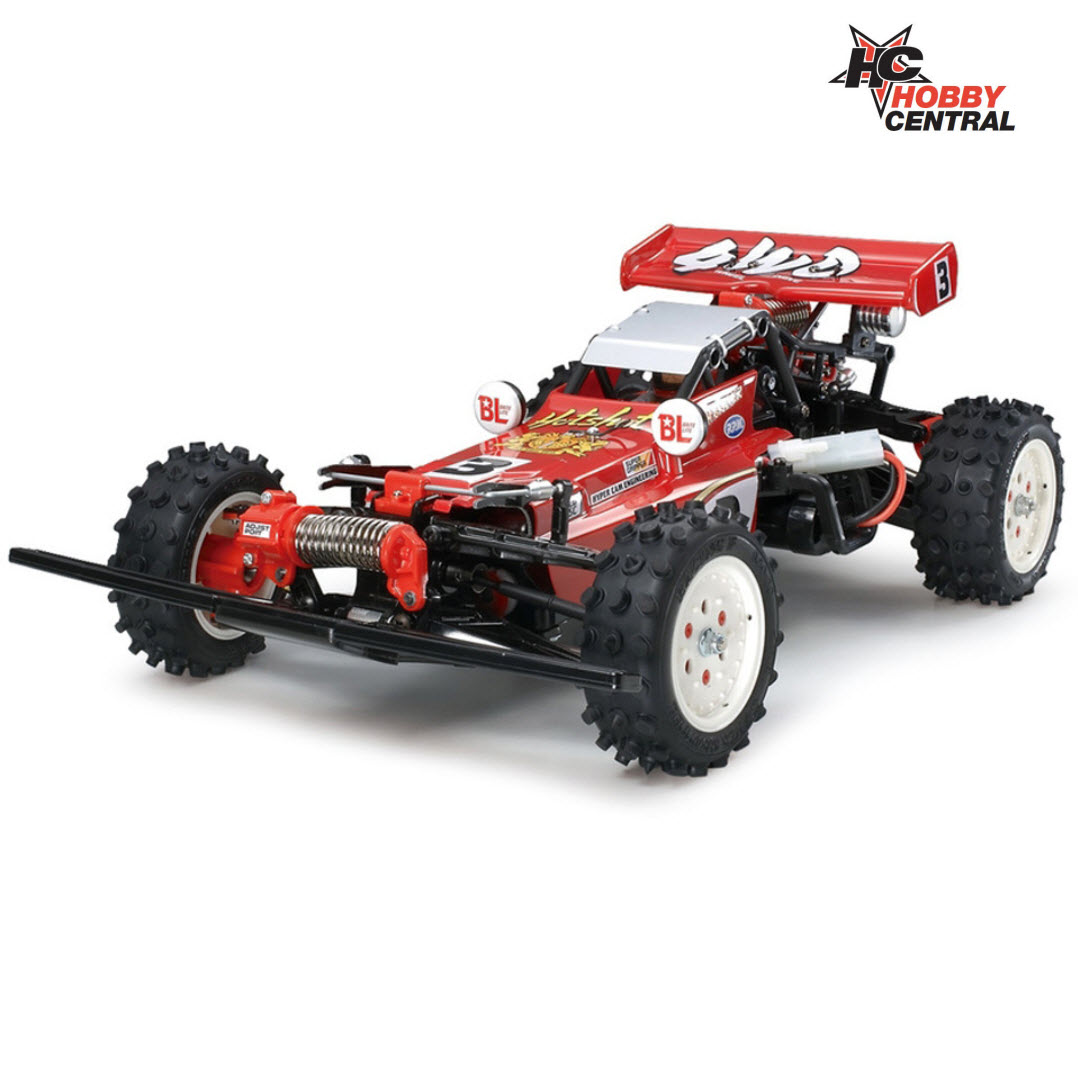

TAMIYA 1/10 THE HOT SHOT RE-RELEASE KIT 4WD BUGGY, 2007, W/O ESC, 58391-60A HC_OZ

$310.00

or 6 weekly interest-free payments from $51.66 with Laybuy

TAMIYA 1/10 THE HOT SHOT RE-RELEASE KIT 4WD BUGGY, W/O ESC, 58391-60A

Only 2 left in stock

Add to Wishlist
Add to Wishlist

Description

Fans around the world have been clamoring for more re-releases of classic Tamiya R/C cars and Tamiya has indeed been listening. The eye-catching Hotshot 4WD buggy, which was originally released in the 1980’s and helped popularize the R/C hobby, now makes a return with it’s timeless body shape matched with updated improvements to let both old and new R/C fans enjoy exciting off-road action.

An R/C Legend Returns
With its aggressive-looking body design and low center of gravity, the Hotshot, Tamiya’s first shaft-driven 4WD R/C buggy, made waves when it was introduced in 1985. The unique 3-piece chassis included such innovative features as front/rear mono-shock oil dampers, 4-wheel double wishbone suspension equipped with stabilizers, and front/rear fully-enclosed gearboxes equipped with thrust ball bearings and differential gears. A wide array of Option Parts were produced especially for modifying the Hotshot, and the machine became something that every youth at that time dreamed of. Fans have clamored for a re-release of the epoch-making R/C car, and Tamiya now brings back this legend to let fans relive their childhood memories.

An Old Dog with New Tricks
Tamiya designers have given the Hotshot a makeover, replacing older, harder to assemble parts with modern equivalents but still keeping true to the spirit of the original Hotshot. While the front/rear double wishbone suspensions and adjustable mono-shock oil dampers remain the same, the drivetrain features modern dog bone type propeller shafts for enhanced reliability. The oil dampers have also been changed to the more modern diaphragm type. Also, with the use of a modern ESC, the original Hotshot’s rear aluminum heat sink was no longer necessary. However, the Hotshot would not look the same without it, so our solution was to install a dummy part to remain faithful to the original look. Take this updated Hotshot out for a spin and compare it to today’s R/C buggies to experience how far this hobby has developed!

Specifications
●Length: 390mm ●Width: 235mm ●Height: 150mm ●Weight: 1270g ●Tread: (Front/Rear) 194mm ●Tire Width/Diameter: (Front) 28/82mm, (Rear) 34/82mm  ●Frame: ABS Resin Monocoque ●Drivetrain: Shaft-driven 4WD ●Diff. Gear: 3-bevel ●Steering: 2-piece Tie Rod ●Suspension: 4-wheel Double Wishbone  ● Gear Ratio: 8.1:1, 10.04:1 ●Motor: Type RS540



Product Specifications (Specifications subject to change)

Type Detail
Scale 1/10
Construction type Assembly kit
Terrain use Off-Road
Drive-train 4WD
Drive type Gearbox
Drive line Dog bone
Differential type Gear
Suspension Independent suspension
Steering mechanism Direct servo
Shock damper Friction damper
Shock damper material Plastic
Tire type Rubber
Tire tread Block-pattern
Body material Polycarbonate
Chassis material Plastic
Electronic Speed Control (ESC) Included
ESC model Not Included
LED Light buckets No
LED lights No
Motor 540-brushed type
Bearings Plastic bushing
Adjustable camber Fixed
Adjustable toe angles Front only
Adjustable ground clearance Fixed
Adjustable gear ratio Fixed
Adjustable wheelbase Fixed
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 Redesigned chassis features 4-wheel double wishbone suspension with unique front and rear mono-shocks.
Special feature 2 Diaphragm-type oil dampers provide stable off-road driving performance.
Special feature 3 New propeller shaft features dog bone type linkage to optimize power transmission efficiency.
Special feature 4 Buggy body with large rear wing remains faithful to the original styling.
Special feature 5 Aluminum heat sink helps keep the motor cool and is also an eye-catching chassis highlight.
Special feature 6 Triangular wheel hubs further enhance the buggy’s unique look.
Requires A 7.2 battery & charger & Servo & ESC
Requires B 2-channel radio gear
Requires C Polycarbonate paint







Additional information

Weight 3.9 kg
Dimensions 56 × 41 × 15 cm
Height

Length

upc

Width
