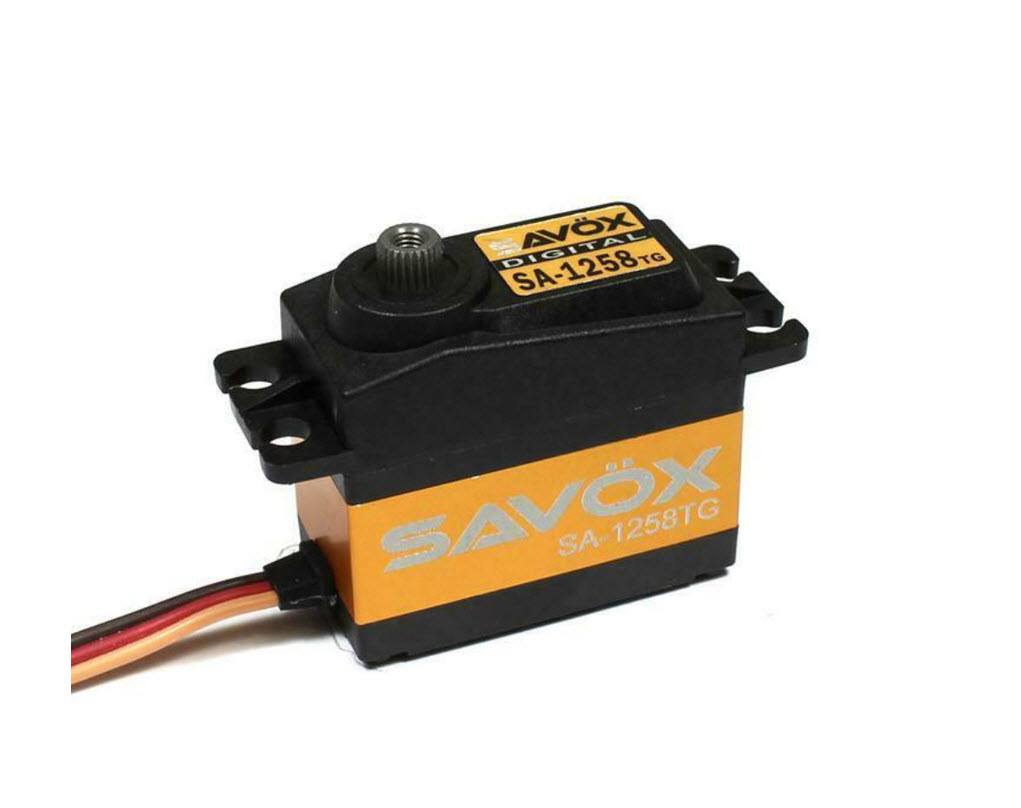

SAVOX 12KG SUPER SPEED TITANIUM GEAR DIGITAL SERVO SC-1258TG HC_OZ

$105.00

SAVOX 12KG SUPER SPEED TITANIUM GEAR DIGITAL SERVO SC-1258TG HC_OZ

Dimensions(mm): 40.3×20.2×37.2
Weight(g): 52.4
Speed(@4.8V sec/60): .10
Torque(@4.8V oz-in): 133.3
Speed(@6.0V sec/60): .08
Torque(@6.0V oz-in): 166.6
Gear: Titanium & Aluminum
Bearing: 2BB
Case: Aluminum
Running current (at no load): 100 mA @ 4.8V
Running current (at no load): 120 mA @ 6.0V
Stall current (at locked): 4000 mA @ 4.8V
Stall current (at locked): 5000 mA @ 6.0V
Idle current (at stopped): 5 mA @ 4.8V
Idle current (at stopped): 5 mA @ 6.0V
Limit angle: 200°±10°
Connector wire gauge: #22 AWG
Connector wire length: 250 ±5 mm
Horn gear spline: 25T
Control system: Pulse width modification
Amplifier type: Digital Controller
Operating Travel: 100° (when1000→2000 μsec)
Neutral position: 1500 μsec
Dead band width: 3 μsec
Rotating direction: Counterclockwise (when1500→2000 μsec)
Pulse width range: 800→2200 μsec
Maximum travel: Approx 130°(when900→2100 μsec)

Out of stock

Add to Wishlist
Add to Wishlist
SKU: SC-1258TG Categories: ,

Description

The SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

Features:

  • Extremely strong titanium gears ensure long-life, durability, and light weight.
  • Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
  • Aluminum middle case allows for cooler operating temperatures.

Specifications:

  • Torque @ 4.8v – 9.6kg/133.3oz-in
  • Torque @ 6v – 12.0kg166.6oz-in
  • Speed @ 4.8v – 0.10 sec/60 deg
  • Speed @ 6v – 0.08 sec/60 deg
  • Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
  • Weight: 52.4g


Additional information

Weight 0.1500 kg
Dimensions 10 × 7 × 5 cm
Height

Length

upc

Width
